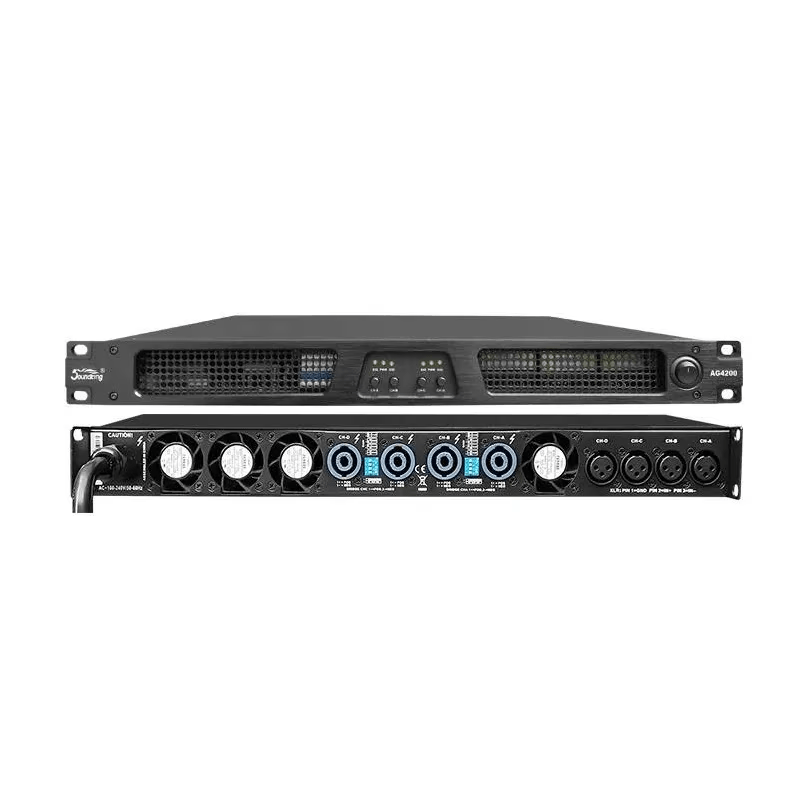

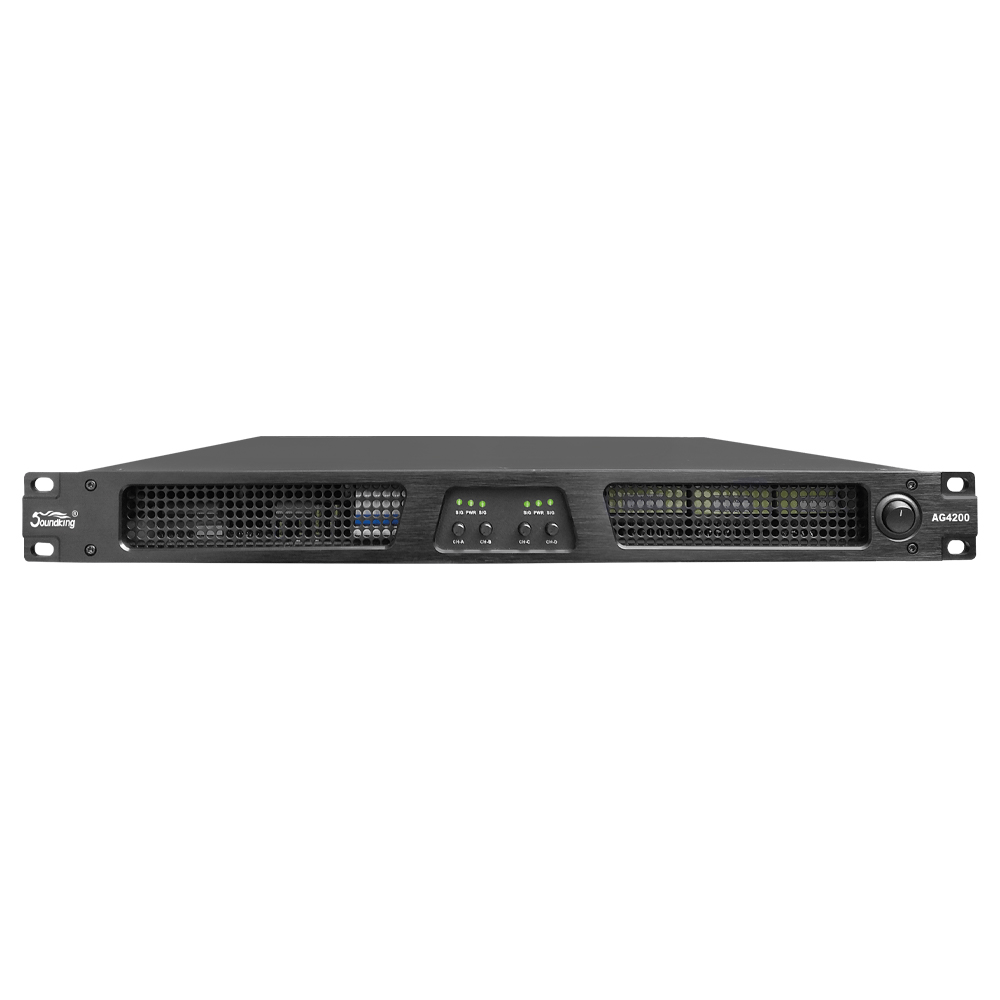

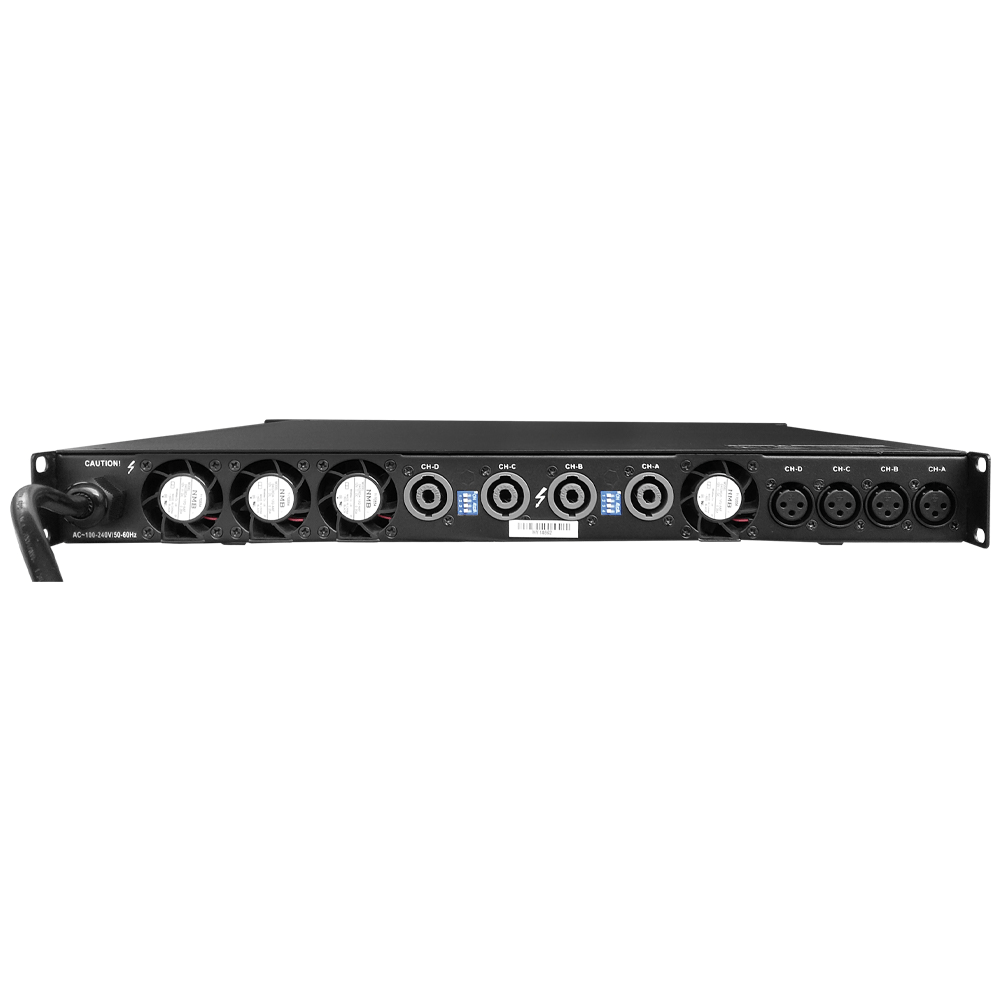

Soundking AG200 Digital Power Amplifier

Description

Power Output
8Ω Stereo Power: 4 x 2000W RMS

4Ω Stereo Power: 4 x 3400W RMS

8Ω Bridge Power: 2 x 6800W RMS

(Note: This high-density 4-channel powerhouse also delivers an extreme 4 x 4760W RMS at 2Ω Stereo and 2 x 9520W RMS at 4Ω Bridge configurations).

Technical Specifications
Frequency Response: 20Hz – 20KHz (±0.2dB at 10% rated output power)

Input Sensitivity: Selectable 0.775V / 1.0V / 1.4V (or adjustable gain stages like 32dB / 38dB)

Operation Modes: Stereo, Parallel, and Mono Bridge

KEY FEATURES
1.Extreme 4-Channel High Density: Delivers massive multi-channel amplification from a single chassis, making it capable of pushing large touring line arrays, heavy multi-subwoofer clusters, or extensive monitor systems simultaneously.

2.Ultra-Efficient Class-D Platform: Engineered on Soundking’s advanced digital platform, leveraging proprietary multi-loop regulation technology to achieve over 95% operating efficiency while running exceptionally cool.

3.Universal 90V–260V PFC Power Supply: Outfitted with a global switching power supply carrying Active Power Factor Correction (PFC) and soft-switching. This layout stabilizes performance when connected to fluctuating generator feeds or unstable venue power grids.

4.Space-Saving 1U Footprint: Despite its staggering total output potential (reaching near 20,000W total peak capacity), it is built into an ultra-slim 1U rackmount frame weighing just 12 kg (26.4 lbs) to heavily reduce mobile rig weight.

5.Flawless Sonic Performance: Maintains severe low-impedance stability down to 2 ohms while delivering an ultra-clean, transparent signal path with minimal distortion to control massive pro-tier acoustic workloads.
